Ford Next Gen Ranger/Everest - Winch Isolator & Fusing Bracket Kits

Building a Next Gen Ranger/Everest ??   You need this kit!

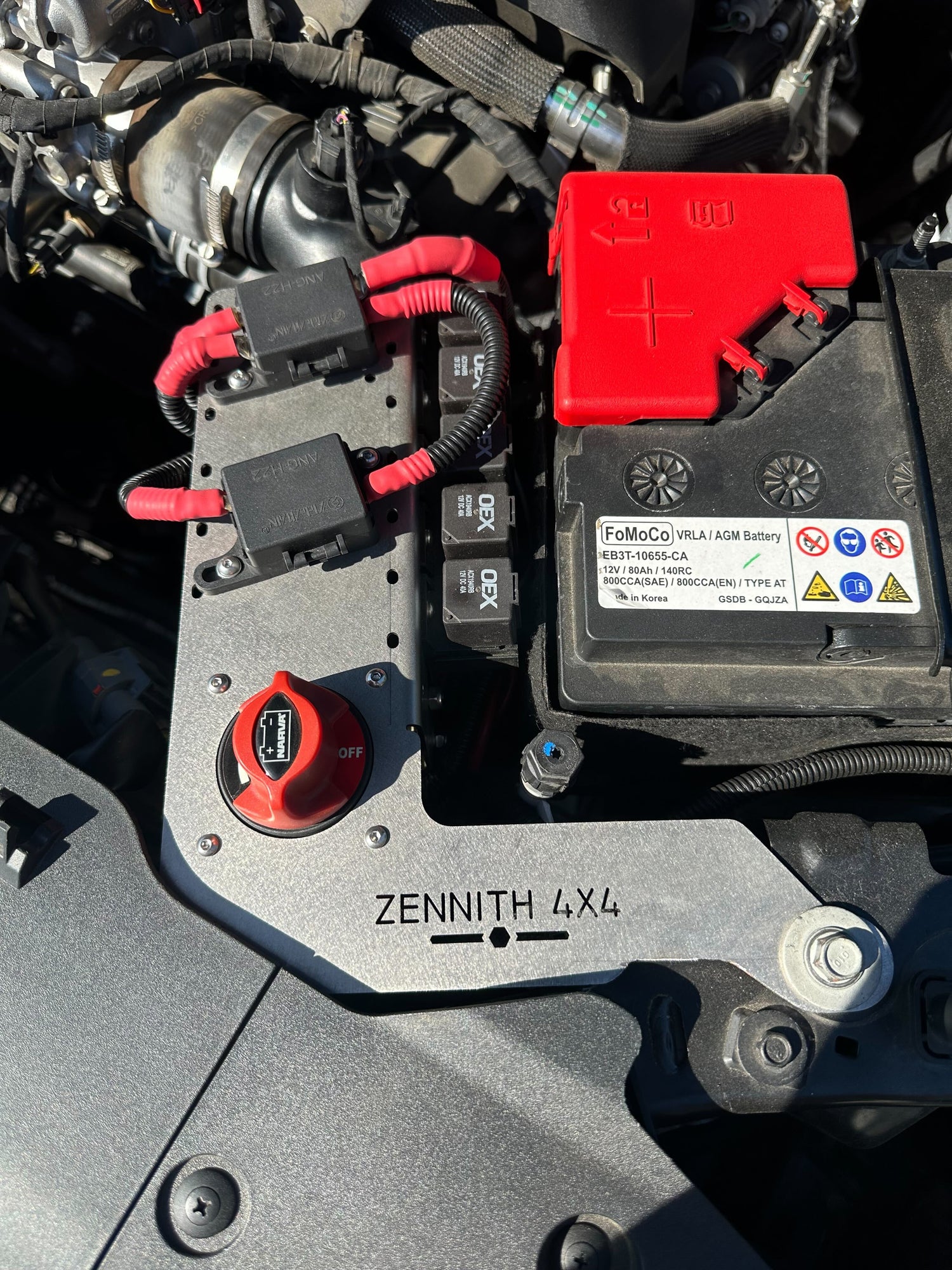

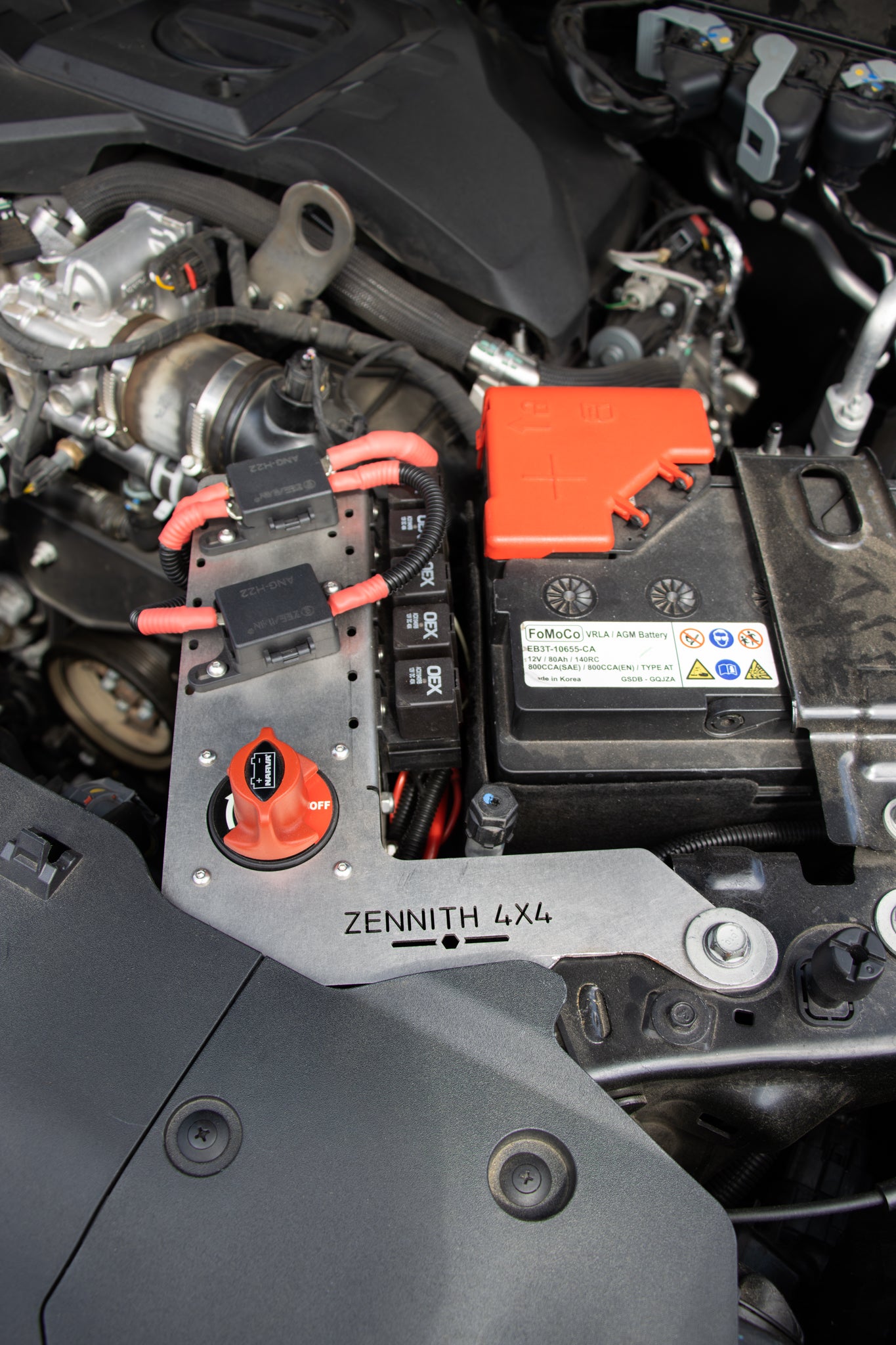

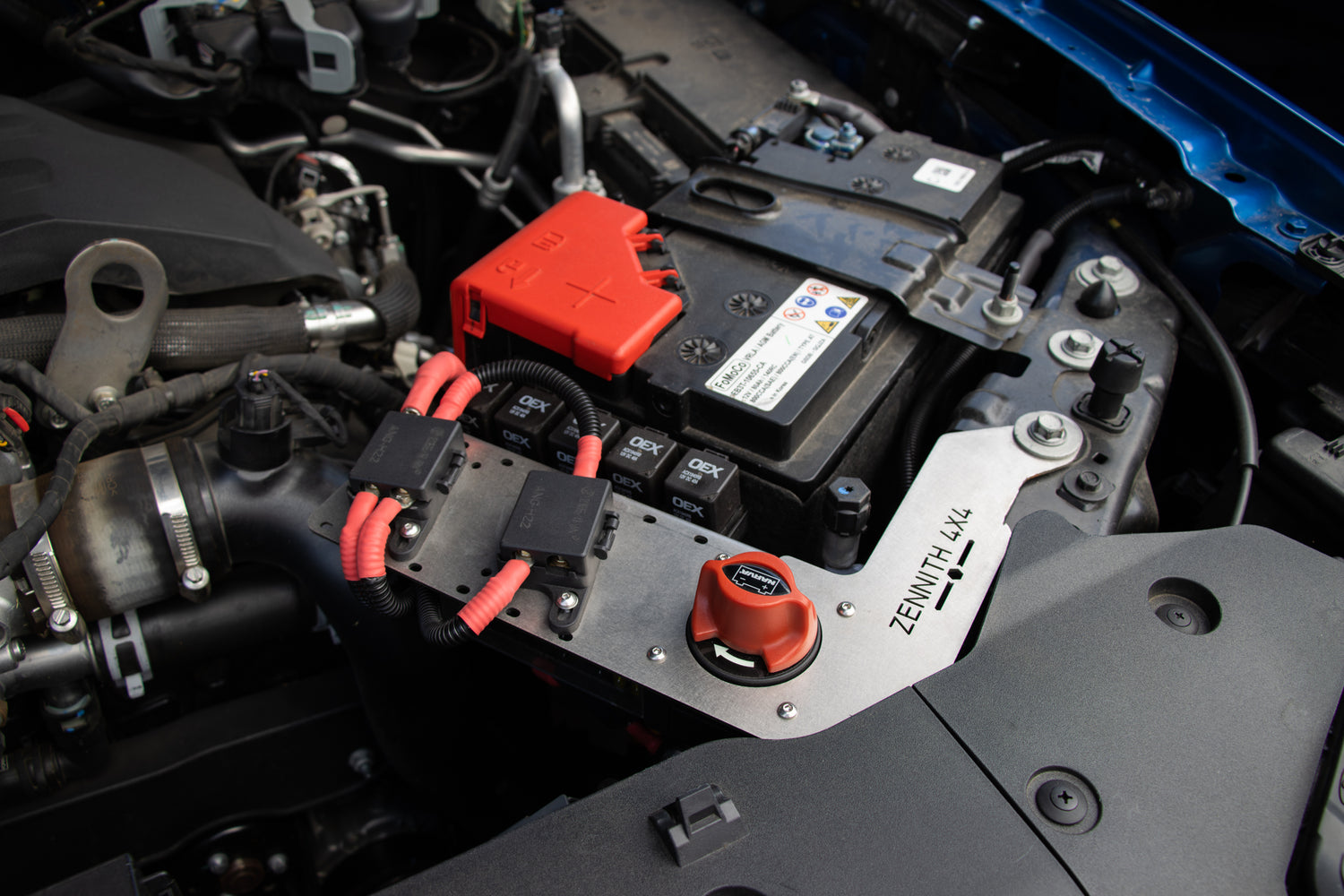

By far the best & neatest way to install all you're electrical fusing, relays & winch isolator. If you want nothing but the best of the best pair it up with a Switch Pro's!

Designed and built by a team who carries out installs of Winches, dual battery kits, UHF's & Trailer wiring. This was designed for our professional installation use and is now available to purchase for professional install's or self install at home.

These kits leave no stone unturned in terms of quality selection of Materials and Parts, We offer a lifetime guarantee on our brackets! (Parts in kit not included - these are covered manufacturer warranty only)

Basic Kit:

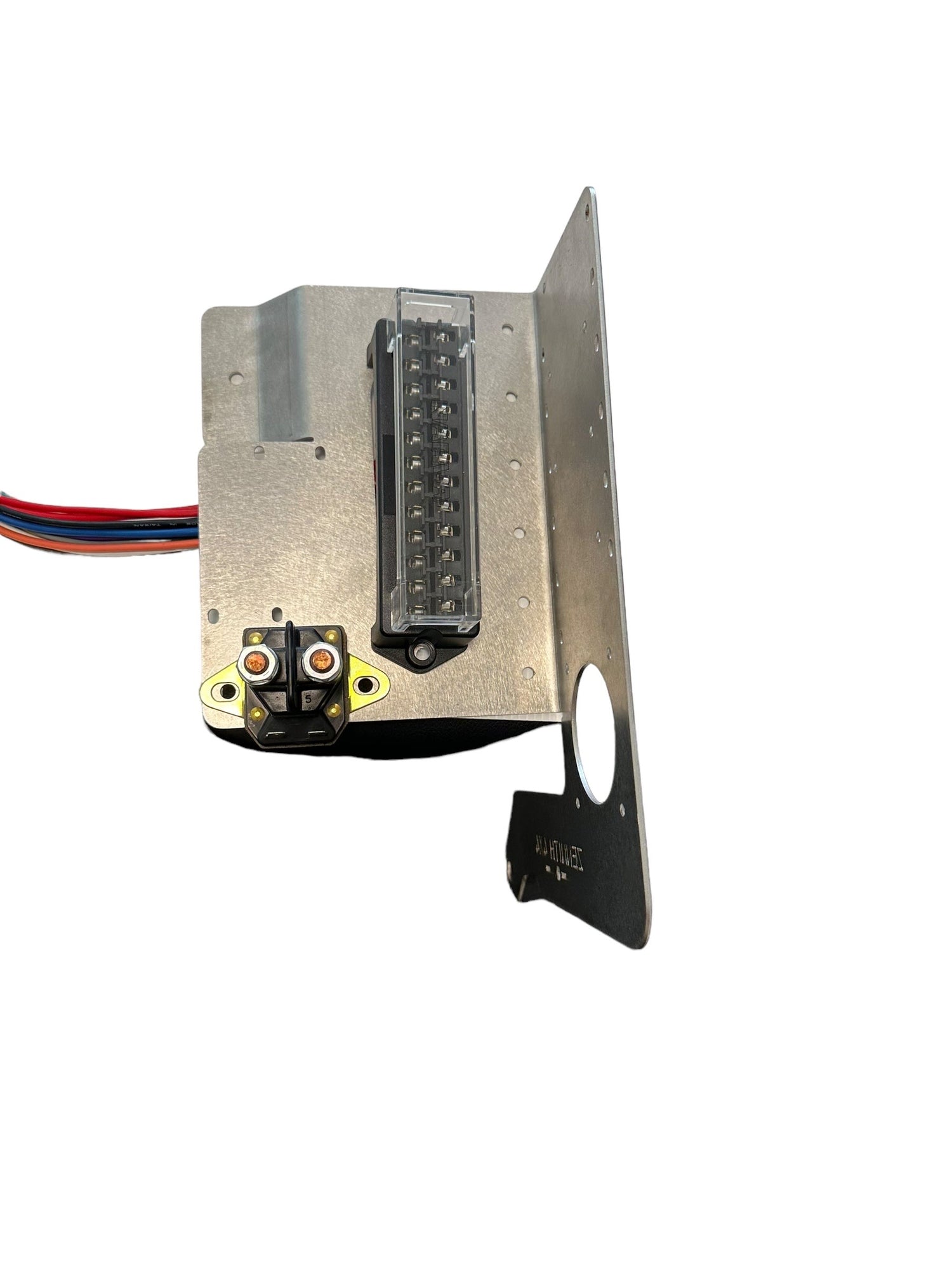

- 1x Next Gen Wiring Bracket - 316 Stainless Steel Laser cut & CNC folded bracket
- 1x Narva Winch Isolator
- 1x Modular Midi Fuse holder
- 1x 12 Way Fuse Block
- 5x Relays & Bases
- 1x Stainless steel installation hardware
- Bracket installation instructions.

Mid Kit:
- Basic kit Plus:
- 4 x Additional Modular Midi Fuses & Modular Midi fuse Buss Bar 5 position (Total of 5 in the kit)


Complete Kit:
- Mid Kit Plus:
- Cole Hersee 100a continuous duty Solenoid.
- 2x Additional Modular Midi Fuse holders & Buss bar. (Total of 7 in the kit)

Switch Pro Kit: (SWITCH PRO SOLD SEPERATELY)
- 1x Next Gen Wiring Bracket - 316 Stainless Steel Laser cut & CNC folded bracket
- Narva Winch Isolator
- 7x Modular Midi Fuses
- 2x Modular Midi Fuse Buss bars (1x 5 position, 1x 2 position)
- Cole Hersee 100A Solenoid
- Bracket installation instructions.
- Dont Forget to add your switch pro's to your cart to complete this kit- Click Here


These kits leave no stone unturned in terms of quality selection of Materials and Parts, We offer a lifetime guarantee on our brackets!

(Warranty of Parts in kit not included in lifetime warranty - Parts are covered by manufacturer warranty only)
