Description
Description
RCR-Force® 12 Panel switch Accessories
Take control of your vehicle's accessories with ease and style! The Switch-Pros RCR-Force® 12 Switch panel boasts a durable 12 gauge construction, perfect for any truck or side by side. No more fumbling with wires and switches – this panel streamlines your experience for a smooth and efficient ride.

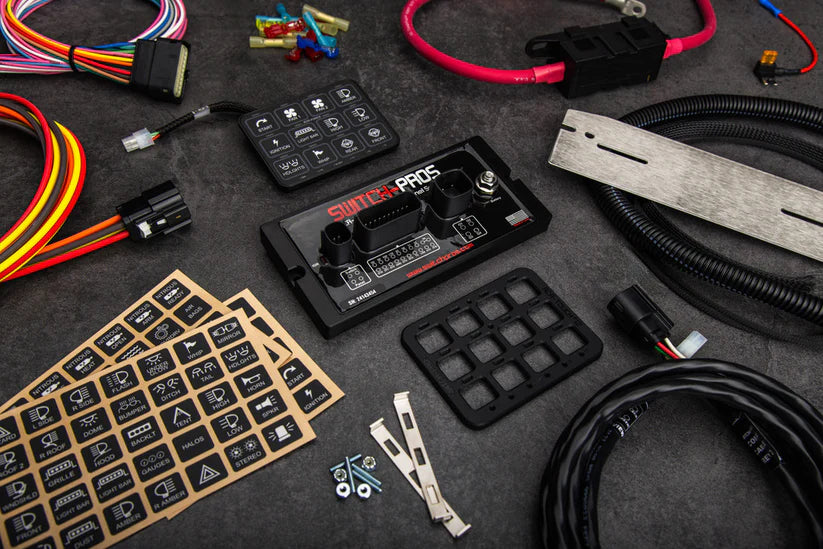

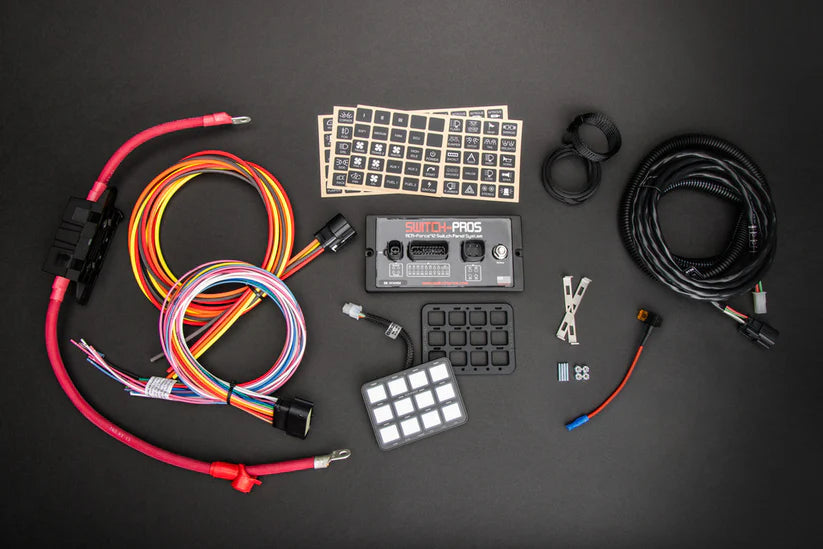

What’s Included?
-
Switch Panel and Power Module
-

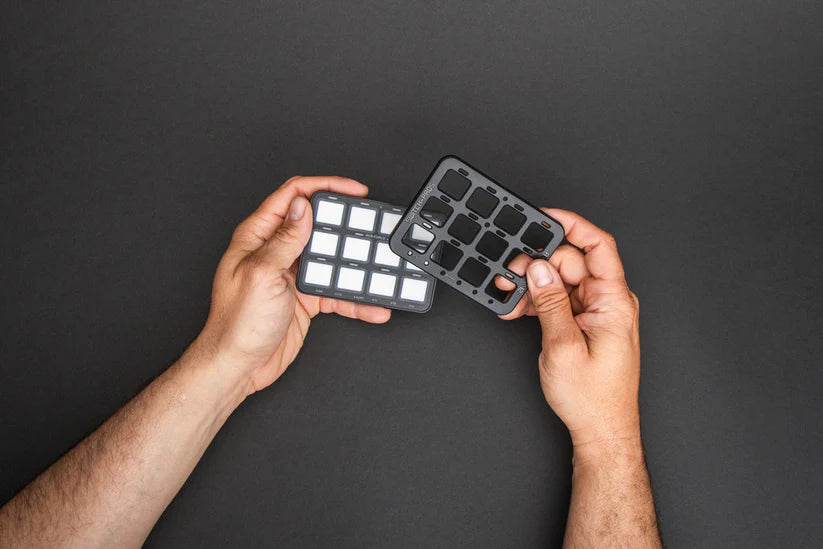

RCR-Touch® cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
-
11’ of Communication Cable between Switch Panel and Power Module
-
Power Cable with 150A inline fuse
-
125 User Selectable Legends included (Horizontal orientation)
-
Installation brackets and hardware
-
20-pin color coded output harness
-
4-pin color coded high inrush output harness
-
Detailed installation Guide
Features
-
RGB Backlighting
-
Built-in Bluetooth module for use with free Switch-Pros App
-
Program and operate your panel from any device with access to the iOs or Google Play Store
-
Battery Voltage Readout on App screen
-
Orange LED switch indicators
-
6 Programmable LED Status indicators
Specifications
-
150amp capacity with 17 outputs
-
4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)
-
11 rated @ 15A, which can be combined for larger loads
-
1 Low Side driver switch, rated @ 2A
-
Adjustable Output Overcurrent Values
-
Switch Panel enclosure measures 4” L x 3” W x .375” H (United States Design Patent No. US D914,614 S)
-

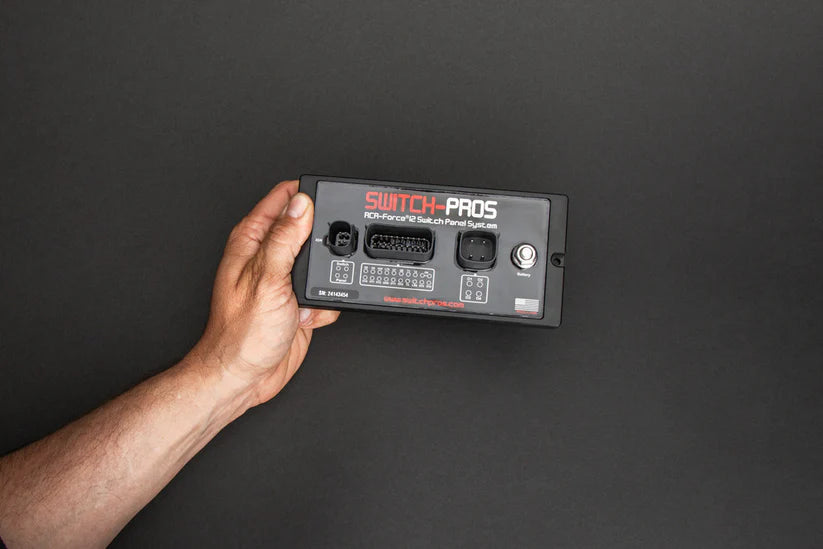

Power Module Measures 7”L x 3.5”W x .5”H (excluding connectors)
-
Power Module Under Hood rating 125°C to -40°C
-
Switch Panel and Power Module Waterproof rating of IP67
Programming & Other Features
-
Preset Dimming function WITH MEMORY (100% to 10% brightness)
-
Master Mode, with ability to turn up to 11 other switches On AND Off with one touch
-
On-On-Off logic
-
Touch Panel lockout
-
On/Off or Momentary
-
Ignition or Battery Input
-
Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
-
Automatic Power-Up upon vehicle start up
-
Safety Lockout for specific switches
-
Time Delay off
-
No bulky relay box
-
Up to 4 output wires can be assigned to 1 switch
-
Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
-
Low Voltage Disconnect
-
Sleep Mode for minimal power consumption
-
Daisy Chain up to 3 Switch Panels to One Power Module
Proudly made in the USA!
