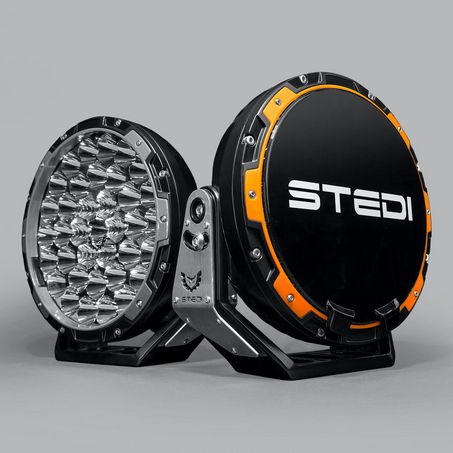

STEDI TYPE-X ™ PRO LED DRIVING LIGHTS

Always On The Cutting Edge

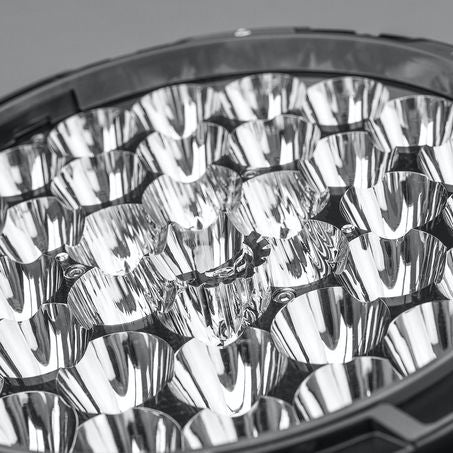

Cutting edge performance starts with cutting edge LED technology. Equipped with 37 x Oslon High-Flux LEDs, they have the highest lumen density per mm2 of any other comparable LED on the market. The result? Higher net light volume and unrivalled beam throw. The reflector geometry was tweaked over and over again to achieve a highly functional beam pattern. An astonishing beam throw coupled with a wide enough view to the shoulders, will have you insisting to drive when the sun goes down.

A Wolf In Wolf's Clothing

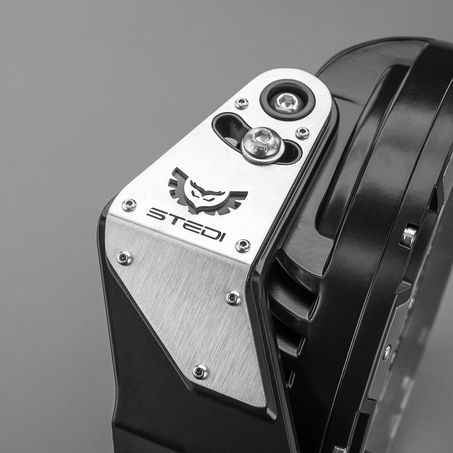

The Type-X Pro is all about pushing boundaries. Forget folded steel brackets. The Type X Pro uses 10mm thick, high pressure, die cast aluminium, it was designed to withstand the most extreme corrugated roads time and time again. Staying true to the Stedi design aesthetic, it has brushed, stainless steel shoulder plates which will compliment any build from the off-road race buggy to the tricked out Landcruiser.

The hard-coated optical grade lens shares the same DNA as ballistic glass making it virtually indestructible. Your new Stedi Driving Lights will stand the test of time - a UV stabiliser has been added to ensure that it will never discolour and fade. This has allowed Stedi to do away with any secondary lens covers or filters which can reduce light intensity.

Iconic Performance

No doubt the attention grabber is the unrelenting beam distance of 1,155m as a pair. Dig a little deeper and the real strength is the beam strength in the mid to long range. It has a strong 82m width at 100m distance it continues strongly through the entire beam distance. This is thanks to the 6 built in flood reflectors

Stedi's key focus was on driver confidence, they increase beam distance and focus on a quality beam width to maximise driver reaction time. Stedi have also maximised driver comfort by producing a smooth beam and by eliminating shadows. They've reduced the light wasted blinding koalas in the treetops and directly in front of your vehicle.

• 37 OSRAM Oslon LEDs Per Light
• Sold as a pair
• Higher Light Volume - Unrivaled Beam Throw
• 1,150 Meters Of Unrelenting Beam Distance (Per Pair)
• 5700K Colour Temperature

• Reflector Design Optimises Light Usage In Front Of The Driver and To The Road Shoulder
• Hard Coated Optical Grade Lens - Similar To Ballistic Glass
• 4mm thick 304 Series Stainless Mounting Bracket, Rubber Dampeners
• IP68 - Submersible To 3M
• Smart High Beam Wiring Kit included with HB3 and H4 adapters



  WHAT'S INCLUDED

  • 2 x STEDI Type-X PRO LED Driving Lights
  • 2 x Protective STEDI Black Out Covers
  • 2 x Grey Colour Rings
  • 2 x Orange Coloured Rings
  • 1 x Smart High Beam Wiring Harness DTP-2 Sealed Connectors, H4, HB3 adapter plugs to high beam. 60A Relay, Fuse, Switch
  • Complete Stainless Steel fastener kit.
  • Wiring & Fitting Instructions
