  • SKU: OVSSP-SP9100
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Switch-Pros SP9100 Control System

$1,095.00
  • Barcode:
DESCRIPTION

Switch-Pros Sp 9100 System

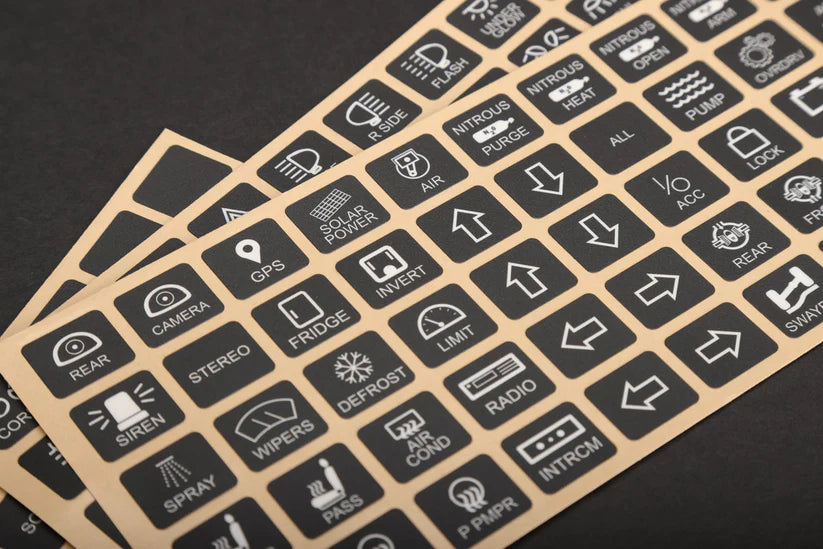

  • 100 User-selectable switch legends (not shown)
  • Eight user-programmable switches
  • Four 35A circuits and four 20A circuits
  • Waterproof, Solid State 125A Power Module
  • RGB Backlighting provides unlimited color options, using Color Picker on App
  • Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
  • Switches can be programmed for:
  • On/Off or Momentary
  • Ignition or Battery Input
  • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
  • Memory Function
  • Master Mode, with ability to turn multiple outputs On AND Off with one touch
  • Automatic Power-Up upon vehicle start up
  • Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
  • Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
  • Sleep Mode for minimal power consumption
  • Color Coded circuit wires
  • LED Input Status Indicators for easy troubleshooting
  • Time Delay Off function available for all circuits
  • Splash proof switch panel with Polycarbonate overlay faceplate
  • Program and control the system from switch panel pad or smart phone
  • Bluetooth interface with FREE Apple or Android App
  • Battery Voltage Readout on App screen
  • No Fuses or Bulky Relay box?
  • Built-In Bluetooth Module

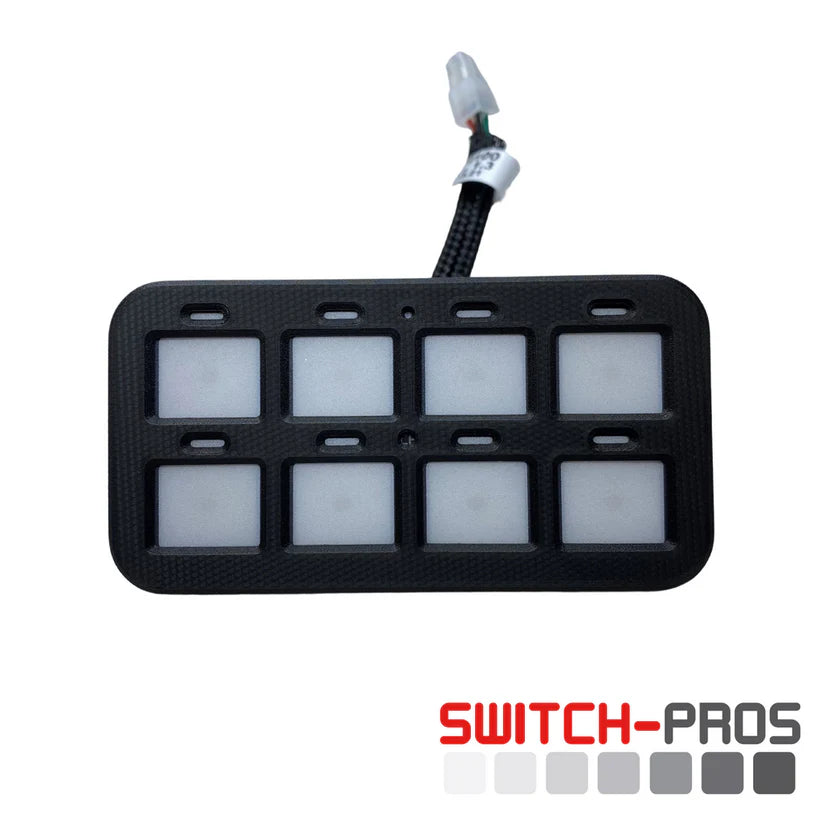

Switch Panel Specs:

  • RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting

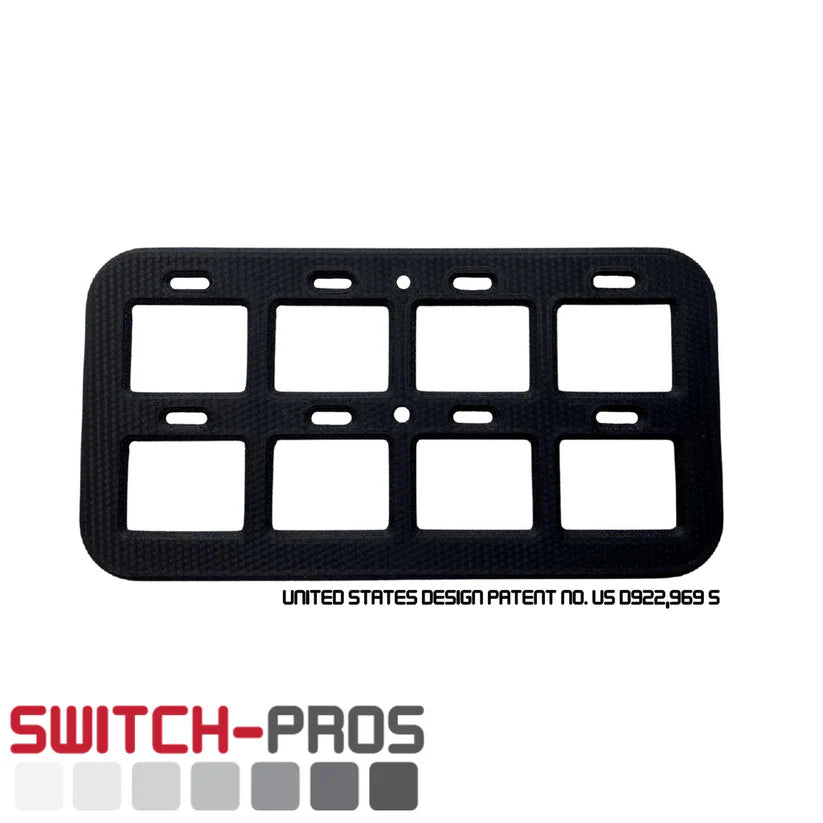

  • Built-In Bezel Style Switch Panel enclosure measures 4? L x 2? W x .375? H ; includes concealed mounting hardware for factory-look installation
  • Orange LED switch indicators
  • 100 User Selectable Legends

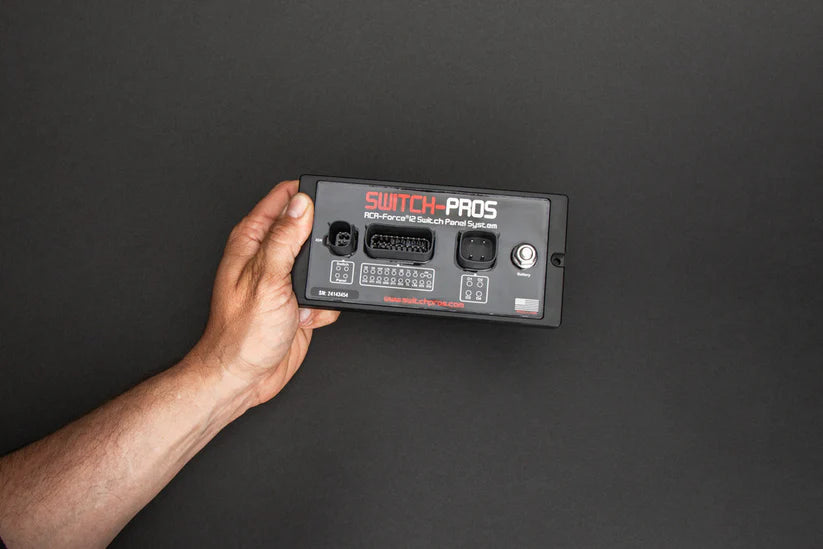

Power Module Specs:

  • 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
  • 125A maximum rating
  • Waterproof and Solid State
  • 6?L x 3?W x .5?H (excluding connectors)
  • LED Input Status Indicators for easy troubleshooting
  • Underhood rated 125? to -40?C

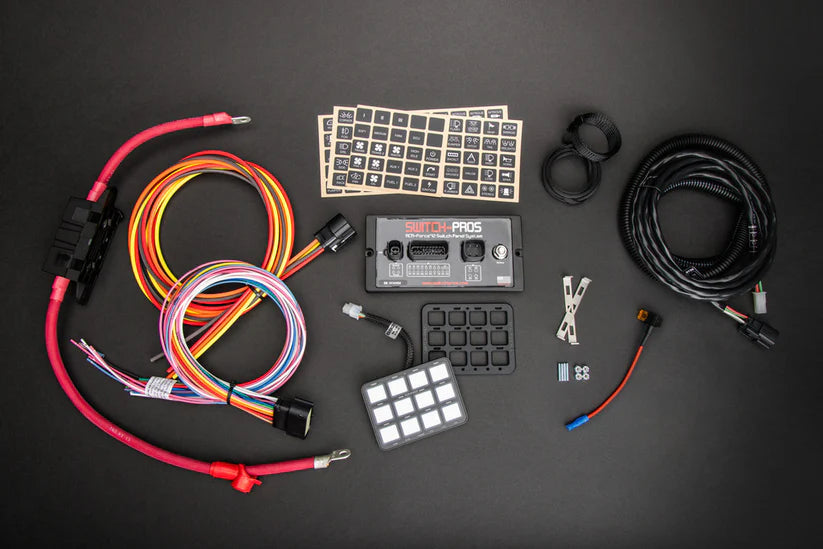

Kit Also Includes:

  • 11″ of Communication Cable between Switch Panel and Power Module
  • Color Coded Output wires
  • Wire harness with Waterproof, sealed automotive grade connectors
  • Power Cable with 125A inline fuse
